Styles and Colours
for Spouting and Gutters

Custom Fascia and Spouting

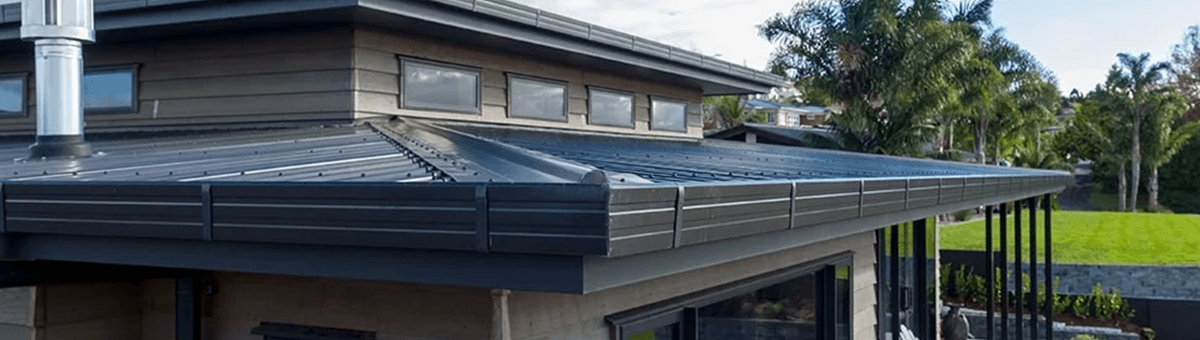

Gutter styles

Styles

Spouting and Gutters

Quarter Round

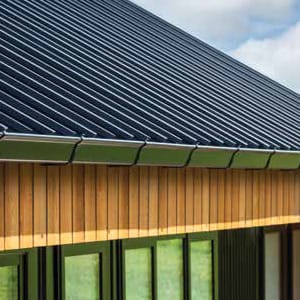

Quarter Round gutterQuarter round Gutter- product image
Quarter Round Spouting maintains its traditional appeal, and provides simplicity and classic lines for use in most residential applications. Supplied with internal or external brackets.
Quarter Round gutter specs
Full cross sectional area:
6815mm2

Old Gothic

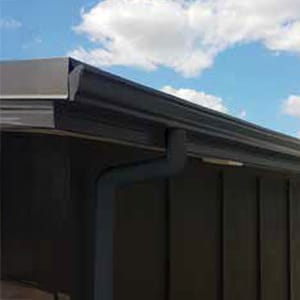

Old Gothic gutter styleOld Gothic- product image
Old Gothic, which is available in two sizes, is reminiscent of the spouting types used on colonial homes. Old Gothic spouting is supplied with internal or external brackets.

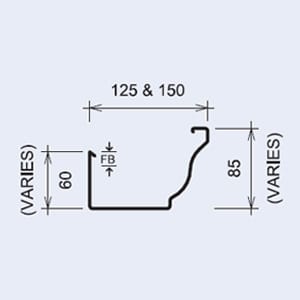

Old Gothic gutter specs
Full cross sectional area (125):
6000mm2
125mm and 150mm

1/2 Round

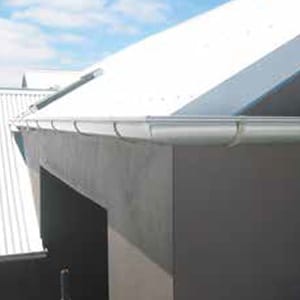

Half Round 168mmHalf Round 168mm- product image
Well proven and recognised as an aesthetically pleasing spouting product, the ½ Round will certainly enhance the overall appeal of your home.

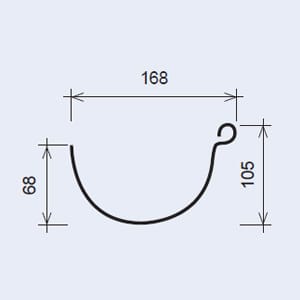

Half Round 168mm gutter specs
Full cross sectional area:
7930mm2
1/2 Round 160mm

Box Gutter

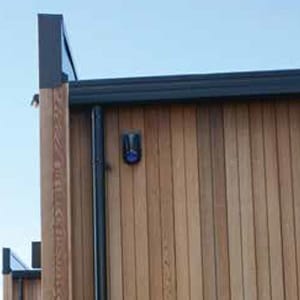

125mm Box Gutter125mm Box Gutter- product image
Gutter sizes are designed to perform where heavy rainfall may occur. A higher face prevents unsightly views of the end of the roofing sheet, particularly on higher ribbed profiles.

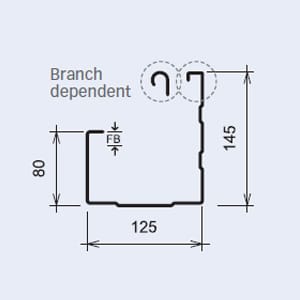

Box gutter specs
Full cross sectional area:
10000mm2
125mm, 175mm & 300mm
Cross Section mm
(SQ)
1/4 round Gutter
6815mm2
125mm Old Gothic

6000mm2

150mm Old Gothic

9000mm2

160mm half round

7930mm2

125mm Box Gutter

10000mm2

175mm Box Gutter

21525mm2

300mm Box Gutter

29355mm2

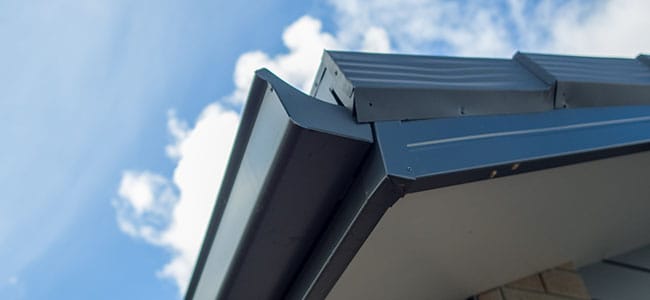

Quarter Round Spouting
Roofing Industries logo

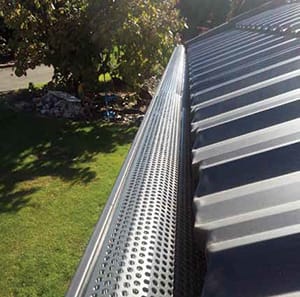

Ezi Lok - Gutter Screen
Gutter Screen
EziLok Gutter Screen

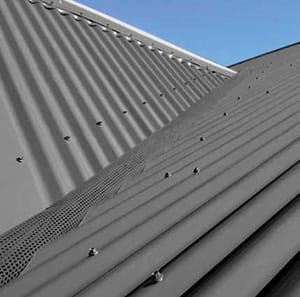

Ezi Lok - Valley Screen
Valley Screen
EziLok Valley Screen
Innovative New Zealand developed spouting gutter and roof valley protection systems that are simple to install and remove!

What makes Ezi-Lok™ Gutter Screen and Ezi-Lok™ Valley Screen so unique?

It’s a fact of nature that grime and seed is continually
being deposited on your roof from weather and birds. This washes through most screens and into the gutters, ensuring a perfect growing medium for unsightly weeds.

Current systems tend to be permanently fixed in position and the only way to remove debris is to water blast through the mesh system, which is difficult, ineffective and rather messy to say the least.

Revolutionary Ezi-Lok™ Gutter Screen and Ezi-Lok™ Valley Screen systems on the other hand are simply snapped into or out of position allowing for easy access, ensuring simple cleaning with a garden hose.

Just look at the advantages:

  • Simple to install and remove
  • Manufactured from AR8™ Aluminium – no rust
  • Leaves simply blow from the roof and are not deposited in the rainwater system
  • Prevents birds or rats nesting in the roof
  • Extremely attractive & complements the overall roof
  • No need to perforate roofing with fasteners
  • Simply installed after the roof is complete
  • No more blocked downpipes
  • No more clogged gutters or valleys
  • Can be used on any roof type
  • Available in a range of modern colours
  • Low installation cost – DIY friendly
DOWNLOAD OUR BROUCHURE

Rainwater Heads

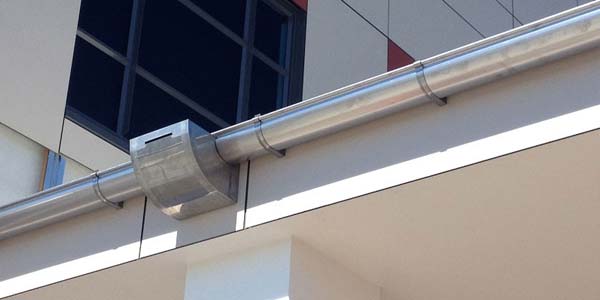

Rainwater head
At Custom Fascia and Spouting, we provide a variety of rainwater heads in both standard and custom designs.

Our rainwater heads are available in ColorCote, copper, aluminum, titanium zinc, and stainless steel. Our rainwater systems are offered in aluminum, titanium zinc, and stainless steel for enhanced durability and strength.

Contact us to see what we can do for you.

Downpipes

Downpipe Diameter

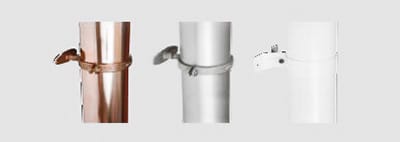

Downpipe examples
100mm | 80 mm | 65mm
Our standard downpipes come in sizes of 65mm, 80mm, 100mm, and 150mm, and are provided in various lengths to meet your needs.

We can also create custom downpipes in square or rectangular shapes, or design something unique for your specific application.

We offer and install downpipes in materials such as ColorCote, copper, aluminum, titanium zinc, stainless steel, and PVC. We strive to ensure you get the right material and colour to complement your home.
View Colorsteel or Colorcote colours for these aluminium downpipes.
Roof Pitch Specifications
Roof pitch (degrees)
0 – 25
26 – 35
36 – 45
46 – 55
65mm Round
60
50
40
35
80mm Round
100
80
70
60
100mm Round
155
130
110
90
Downpipe example
Aluminum downpipes are an excellent choice for both charged downpipe systems and tank systems due to their lightweight, corrosion-resistant properties, and ease of installation. In a charged downpipe system, aluminum's durability ensures it can withstand high-pressure water flow, while its resistance to rust and degradation from environmental elements makes it ideal for long-term use. Similarly, in a tank system, aluminum downpipes help with water collection and management, ensuring efficient flow and minimal maintenance. Additionally, aluminum’s aesthetic appeal and smooth surface contribute to reducing the buildup of debris, further enhancing the system’s overall performance.

Colours

With 40 shades to choose from, our colour range is perfect for any project. Whether you're re-roofing a villa on a heritage-protected, tree-lined avenue or building a modern, architecturally designed home, we have the perfect colours to suit your needs and complement your home's style. Our finishes range from bold high gloss to low gloss options that meet council reflectivity requirements and blend subtly with your environment.

Stratus colours also available

Stormcloud

Stormcloud® is New Zealand’s most popular spouting style.

•  Versatile quarter-round profile
•  Clean, strong lines
•  Suits both traditional and contemporary homes
•  Available in a range of colours with matching RP80® downpipes

Typhoon

Typhoon® has been designed for high rainfall conditions.

•  Half-round profile. Excellent capacity and flow characteristics
•  Internal brackets for a smooth, contemporary look
•  Or external brackets for a retro design feature (also makes the inside of the spouting easier to clean)
•  Available in a range of colours with matching RP80® downpipes – including Metallics
